CPS 353: Internet Programming

Databases, SQL, and MySQL

Simon Miner

Gordon College

Last Modified: 09/25/2013

Selected content adapted from material by Marty Stepp, Jessica Miller, and Victoria Kirst © 2012. Used by permission.

Agenda

• Scripture (Ephesians 5) and Prayer
• Check-in
• Web Servers and HTTP
• Web Server Topic Reports
• Databases and SQLL
• Database Design
• Milestone 4

Web Server Basics

Web server is the program on the remote computer generating and serving up content

• takes a request
• returns a response
  • both of these have headers -- i.e. content (MIME) type, user agent, cookies, etc.
• server settings reside in a configuration file
  • for instance, Apache configuration values live in the httpd.conf file

Popular Web Servers

• Apache -- most widely-used server (well over 50% of websites run on Apache
• Microsoft Internet Information Services (IIS) -- Propriety web server optimized to run in Windows environment
• nginx -- open source web server with simpler configuration than Apache

The Netcraft Web Server Survey tracks web server usage statistics.

Common Server Configuration Values

• Document Root -- server-side directory that serves as the root for URLs to the server
  • static content (i.e. HTML files) typically must reside beneath the document root
• Server Name
-- domain name for which the server answers requests
• Used in conjunction with DNS to route requests to the server
• Location -- path configured to execute special application code (i.e. PHP programs)
  • does not need to correspond to a real directory within the document root

Class Research Mini-topics on Web Servers

• HTTP Methods
• User agents
• Server logs
• Custom error pages
• Web server parent and child processes

The $_SERVER superglobal array

• call phpinfo(); to see a complete list

What is a web service?

web service: software functionality that can be invoked through the internet using common protocols

• like a remote function you can call by contacting a program on a web server
• many web services accept parameters and produce results
• can be written in PHP (or another language) and contacted by the browser in XHTML and/or Ajax code
• service's output is often not HTML but rather text, JSON, XML, or other content types

Content ("MIME") types

• Lists of MIME types: by type, by extension

Setting content type with header

header("Content-type: type/subtype");

header("Content-type: text/plain");
print("This output will appear as plain text now!\n");

• by default, a PHP script's output is assumed to be HTML
• use the header function to specify non-HTML output
  • must appear before any other output generated by the script

Example: Exponent web service

• Write a web service that accepts a base and exponent and outputs base raised to the exponent power. For example, the following query should output 81 :

  http://example.com/exponent.php?base=3&exponent=4


• solution:

  header("Content-type: text/plain");
  $base = $_GET["base"];
  $exp = $_GET["exponent"];
  $result = pow($base, $exp);
  print $result;


Emitting partial-page HTML data

# suppose my web service accepts a "type" query parameter ...
<?php if ($_GET["type"] == "html") { ?>
	<ul>
		<?php foreach ($students as $kid) { ?>
			<li> <?= $kid ?> </li>
		<?php } ?>
	</ul>
<?php } ?>

• some web services do output HTML, but not a complete page
• the partial-page HTML is meant to be fetched by Ajax and injected into an existing page

Emitting XML data

...
header("Content-type: text/xml");
print("<?xml version=\"1.0\" encoding=\"UTF-8\"?>\n");
?><books>
<?php foreach ($books as $title) { ?>
	<book title="<?= $title ?>" />
<?php } ?>
</books>

• specify a content type of text/xml or application/xml
• print an XML prologue (the <?xml line) first
  • important: no whitespace output can precede the prologue; must be printed
• then print each line of XML data/tags as output
• some PHP libraries automatically generate XML for you from other data (e.g. databases)

Reporting errors

• how does a web service indicate an error to the client?
  • error messages (print) are not ideal, because they could be confused for normal output
• web service should return an HTTP "error code" to the browser, possibly followed by output
  • these are the codes you see in Firebug's console and in your Ajax request's .status property

  HTTP code	Meaning
  200	OK
  301-303	page has moved (permanently or temporarily)
  400	illegal request
  403	you are forbidden to access this page
  404	page not found
  500	internal server error
  complete list

Using headers for HTTP error codes

header("HTTP/1.1  code  description");

if ($_POST["foo"] != "bar") {
	# I am not happy with the value of foo; this is an error
	header("HTTP/1.1 400 Invalid Request");
	die("An HTTP error 400 (invalid request) occurred.");
}

if (!file_exists($input_file_path)) {
	header("HTTP/1.1 404 File Not Found");
	die("HTTP error 404 occurred: File not found ($input_file_path)");
}

• header can also be used to send back HTTP error codes
  • header("HTTP/1.1 403 Forbidden");
  • header("HTTP/1.1 404 File Not Found");
  • header("HTTP/1.1 500 Server Error");

Checking for mandatory query parameters

function require_params($params) {
	# allow calling as a varargs function
	$params = func_get_args();
	foreach ($params as $param) {
		if (!isset($_POST[$param])) {
			header("HTTP/1.1 400 Invalid Request");
			die("HTTP/1.1 400 Invalid Request: missing required parameter $param");
		}
	}
}

• func_get_args function allows a function to accept a varying # of params

Relational databases

• relational database: A method of structuring data as tables associated to each other by shared attributes.
• a table row corresponds to a unit of data called a record; a column corresponds to an attribute of that record
• relational databases typically use Structured Query Language (SQL) to define, manage, and search data

Why use a database?

• powerful: can search it, filter data, combine data from multiple sources
• fast: can search/filter a database very quickly compared to a file
• big: scale well up to very large data sizes
• safe: built-in mechanisms for security and failure recovery (e.g. transactions)
• multi-user: concurrency features let many users view/edit data at same time
• abstract: provides layer of abstraction between stored data and app(s)
  • many database programs understand the same SQL commands

Database software

• Oracle
• Microsoft SQL Server (powerful) and Microsoft Access (simple)
• PostgreSQL (powerful/complex free open-source database system)
• SQLite (transportable, lightweight free open-source database system)
• MySQL (powerful free (?) open-source database system)
  • many servers run "LAMP" (Linux, Apache, MySQL, and PHP/Perl/Python)
  • Wikipedia is run on PHP and MySQL
  • we will use MySQL in this course

Example simpsons database

• to test queries on this database, log into MySQL on ips.cs.gordon.edu with your username and type "use simpsons;"

Example world database

• to test queries on this database, log into MySQL on ips.cs.gordon.edu with your username and type "use world;"

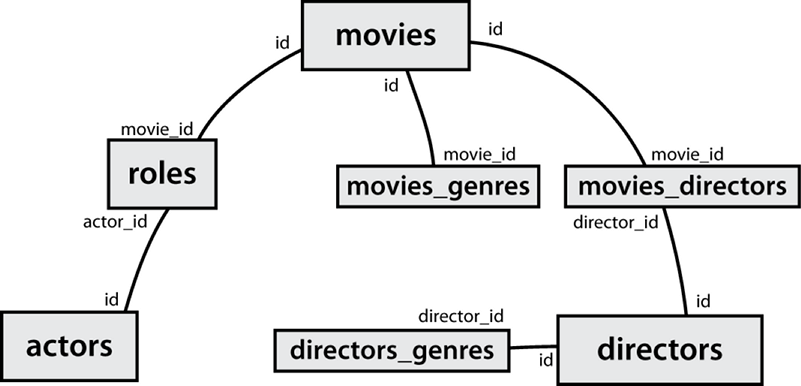

Example imdb database

• to test queries on this database, log into MySQL on ips.cs.gordon.edu with your username and type "use imdb;"

SQL basics

SELECT name FROM cities WHERE id = 17;

INSERT INTO countries VALUES ('SLD', 'ENG', 'T', 100.0);

• Structured Query Language (SQL): a language for searching and updating a database
• a standard syntax that is used by all database software (with minor incompatiblities)
  • generally case-insensitive
• a declarative language: describes what data you are seeking, not exactly how to find it

Issuing SQL commands directly in MySQL

SHOW DATABASES;
USE database;
SHOW TABLES;

• SSH to ips.cs.gordon.edu, then type:

$ mysql -u username -p
Password:
Welcome to the MySQL monitor.  Commands end with ; or \g.

mysql> use project_username;
Database changed

mysql> Sshow tables;
+-----------+
| orders    |
| peers     |
| users     |
| ...       |
+-----------+

The SQL SELECT statement

SELECT column(s) FROM table;

SELECT name, code FROM countries;

• the SELECT statement searches a database and returns a set of results
  • the column name(s) written after SELECT filter which parts of the rows are returned
  • table and column names are case-sensitive (at least in MySQL)
  • SELECT * FROM table; keeps all columns

The DISTINCT modifier

SELECT DISTINCT column(s) FROM table;

SELECT language
FROM languages;

SELECT DISTINCT language
FROM languages;

• eliminates duplicates from the result set

The WHERE clause

SELECT column(s) FROM table WHERE condition(s);

SELECT name, population FROM cities WHERE country_code = "FSM";

• WHERE clause filters out rows based on their columns' data values
• in large databases, it's critical to use a WHERE clause to reduce the result set size
• suggestion: when trying to write a query, think of the FROM part first, then the WHERE part, and lastly the SELECT part

More about the WHERE clause

WHERE column operator value(s)

SELECT name, gnp FROM countries WHERE gnp > 2000000;

• the WHERE portion of a SELECT statement can use the following operators:
  • =, >, >=, <, <=
  • <> : not equal
  • BETWEEN min AND max
  • LIKE pattern
  • IN (value, value, ..., value)

Multiple WHERE clauses: AND, OR

SELECT * FROM cities WHERE code = 'USA' AND population >= 2000000;

• multiple WHERE conditions can be combined using AND and OR

Approximate matches: LIKE

WHERE column LIKE pattern

SELECT code, name, population FROM countries WHERE name LIKE 'United%';

• LIKE 'text%' searches for text that starts with a given prefix
• LIKE '%text' searches for text that ends with a given suffix
• LIKE '%text%' searches for text that contains a given substring

Sorting by a column: ORDER BY

ORDER BY column(s)

SELECT code, name, population FROM countries
WHERE name LIKE 'United%' ORDER BY population;

• can write ASC or DESC to sort in ascending (default) or descending order:

  SELECT * FROM countries ORDER BY population DESC;


• can specify multiple orderings in decreasing order of significance:

  SELECT * FROM countries ORDER BY population DESC, gnp;


• see also: GROUP BY

Limiting rows: LIMIT

LIMIT number

SELECT name FROM cities WHERE name LIKE 'K%' LIMIT 5;

• can be used to get the top-N of a given category (ORDER BY and LIMIT)
• also useful as a sanity check to make sure your query doesn't return 10⁷ rows

Learning about databases and tables

SHOW DATABASES;
SHOW TABLES;
DESCRIBE table;

SHOW TABLES;
+-----------+
| students  |
| courses   |
| grades    |
| teachers  |
+-----------+    4 rows in set

The SQL INSERT statement

INSERT INTO table
VALUES (value, value, ..., value);

INSERT INTO students
VALUES (789, "Nelson", "muntz@fox.com", "haha!");

• adds a new row to the given table
• columns' values should be listed in the same order as in the table
• How would we record that Nelson took CSE 190M and got a D+ in it?

More about INSERT

INSERT INTO table (columnName, columnName, ..., columnName)
VALUES (value, value, ..., value);

INSERT INTO students (name, email)
VALUES ("Lewis", "lewis@fox.com");

• some columns have default or auto-assigned values (such as IDs)
• omitting them from the INSERT statement uses the defaults

The SQL REPLACE statement

REPLACE INTO table (columnName, columnName, ..., columnName)
VALUES (value, value, ..., value);

REPLACE INTO students
VALUES (789, "Martin", "prince@fox.com");

• just like INSERT, but if an existing row exists for that key (ID), it will be replaced
• can pass optional list of column names, like with INSERT

The SQL UPDATE statement

UPDATE table
SET column = value,
    ...,
    column = value
WHERE column = value;

UPDATE students
SET email = "lisasimpson@gmail.com"
WHERE id = 888;

• modifies an existing row(s) in a table
• BE CAREFUL! If you omit the WHERE, it modifies ALL rows

The SQL DELETE statement

DELETE FROM table
WHERE condition;

DELETE FROM students
WHERE id = 888;

• removes existing row(s) in a table
• can be used with other syntax like LIMIT, LIKE, ORDER BY, etc.
• BE CAREFUL! If you omit the WHERE, it deletes ALL rows

Creating and deleting an entire database

CREATE DATABASE name;
DROP DATABASE name;

CREATE DATABASE warcraft;

• adds/deletes an entire database from the server

Creating and deleting a table

CREATE TABLE name (
	columnName type constraints,
	...
	columnName type constraints
);
DROP TABLE name;

CREATE TABLE students (
	id INTEGER,
	name VARCHAR(20),
	email VARCHAR(32),
	password VARCHAR(16)
);

• adds/deletes a table from this database
• all columns' names and types must be listed (see next slide)

SQL data types

• BOOLEAN: either TRUE or FALSE
• INTEGER
• DOUBLE
• VARCHAR(length) : a string
• ENUM(value, ..., value): a fixed set of values
• DATE, TIME, DATETIME
• TEXT, LONGTEXT : longer text data
• BLOB : binary data
• quick reference

Column constraints

CREATE TABLE students (
	id INTEGER UNSIGNED NOT NULL AUTO_INCREMENT PRIMARY KEY,
	name VARCHAR(20) NOT NULL,
	email VARCHAR(32),
	password VARCHAR(16) NOT NULL DEFAULT "12345"
);

• NOT NULL: not allowed to insert a null/empty value in any row for that column
• PRIMARY KEY / UNIQUE: no two rows can have the same value
• DEFAULT value: if no value is provided, use the given default
• AUTO_INCREMENT: default value is the last row's value plus 1 (useful for IDs)
• UNSIGNED: don't allow negative numbers (INTEGER only)

Rename a table

ALTER TABLE name RENAME TO newName;

ALTER TABLE students RENAME TO children;

• changes the name of an existing table

Add/remove/modify a column in a table

ALTER TABLE name
	ADD COLUMN columnName type constraints;

ALTER TABLE name DROP COLUMN columnName;

ALTER TABLE name
	CHANGE COLUMN oldColumnName newColumnName type constraints;

• adds/deletes/respecifies a column in an existing table
• if a column is added, all existing rows are given a default value for that column

Example simpsons database

Querying multi-table databases

When we have larger datasets spread across multiple tables, we need queries that can answer high-level questions such as:

• What courses has Bart taken and gotten a B- or better?
• What courses have been taken by both Bart and Lisa?
• Who are all the teachers Bart has had?
• How many total students has Ms. Krabappel taught, and what are their names?

To do this, we'll have to join data from several tables in our SQL queries.

Cross product with JOIN

SELECT column(s) FROM table1 JOIN table2;

SELECT * FROM students JOIN grades;

• cross product or Cartesian product: combines each row of first table with each row of second
  • produces M * N rows, where table 1 has M rows and table 2 has N
  • problem: produces too much irrelevant/meaningless data

Joining with ON clauses

SELECT column(s)
FROM table1
JOIN table2 ON condition(s)
...
JOIN tableN ON condition(s);

SELECT *
FROM students
JOIN grades ON id = student_id;

• join: combines records from two or more tables if they satisfy certain conditions
• the ON clause specifies which records from each table are matched
• the rows are often linked by their key columns (id)

Join example

SELECT *
FROM students
JOIN grades ON id = student_id;

• table.column can be used to disambiguate column names:

  SELECT *
  FROM students
  JOIN grades ON students.id = grades.student_id;


Filtering columns in a join

SELECT name, course_id, grade
FROM students
JOIN grades ON id = student_id;

Filtered join (JOIN with WHERE)

SELECT name, course_id, grade
FROM students
JOIN grades ON id = student_id
WHERE name = 'Bart';

• FROM / JOIN glue the proper tables together, and WHERE filters the results
• what goes in the ON clause, and what goes in WHERE?
  • ON directly links columns of the joined tables
  • WHERE sets additional constraints such as particular values (123, 'Bart')

What's wrong with this?

SELECT name, id, course_id, grade
FROM students
JOIN grades ON id = 123
WHERE id = student_id;

• The above query produces the same rows as the previous one, but it is poor style. Why?
• The JOIN ON clause is poorly chosen. It doesn't really say what connects a grades record to a students record.
  • They are related when they are for a student with the same id.
  • Filtering out by a specific ID or name should be done in the WHERE clause, not JOIN ON.

Giving aliaes to tables

SELECT s.name, g.*
FROM students s
JOIN grades g ON s.id = g.student_id
WHERE g.grade <= 'C';

• can give aliaes to tables, like a variable name in Java
• to specify all columns from a table, write table.*
• (grade column sorts alphabetically, so grades C or better are ones <= it)

Multi-way join

SELECT c.name
FROM courses c
JOIN grades g ON g.course_id = c.id
JOIN students bart ON g.student_id = bart.id
WHERE bart.name = 'Bart' AND g.grade <= 'B-';

• More than 2 tables can be joined, as shown above
• What does the above query represent?
• The names of all courses in which Bart has gotten a B- or better.

A suboptimal query

• Exercise: What courses have been taken by both Bart and Lisa?

• SELECT bart.course_id
  FROM grades bart
  JOIN grades lisa ON lisa.course_id = bart.course_id
  WHERE bart.student_id = 123
  AND lisa.student_id = 888;


• problem: requires us to know Bart/Lisa's Student IDs, and only spits back course IDs, not names.
• Write a version of this query that gets us the course names, and only requires us to know Bart/Lisa's names, not their IDs.

Improved query

• What courses have been taken by both Bart and Lisa?

  SELECT DISTINCT c.name
  FROM courses c
  JOIN grades g1 ON g1.course_id = c.id
  JOIN students bart ON g1.student_id = bart.id
  JOIN grades g2 ON g2.course_id = c.id
  JOIN students lisa ON g2.student_id = lisa.id
  WHERE bart.name = 'Bart'
  AND lisa.name = 'Lisa';


Practice queries

• What are the names of all teachers Bart has had?

  SELECT DISTINCT t.name
  FROM teachers t
  JOIN courses c ON c.teacher_id = t.id
  JOIN grades g ON g.course_id = c.id
  JOIN students s ON s.id = g.student_id
  WHERE s.name = 'Bart';


• What are the names of all students that Ms. Krabappel has taught?

  SELECT DISTINCT s.name
  FROM students s
  JOIN grades g ON s.id = g.student_id
  JOIN courses c ON g.course_id = c.id
  JOIN teachers t ON t.id = c.teacher_id
  WHERE t.name = 'Krabappel';


Designing a query

• Figure out the proper SQL queries in the following way:
  • Which table(s) contain the critical data? (FROM)
  • Which columns do I need in the result set? (SELECT)
  • How are tables connected (JOIN) and values filtered (WHERE)?
• Test on a small data set (when available)
• Confirm on the real data set
• Try out the queries first in the MySQL console.
• Write the PHP/Ruby code to run those same queries.
  • Make sure to check for SQL errors at every step!!

Example imdb database

IMDb table relationships / ids

IMDb query example

[stepp@webster ~]$ mysql -u myusername -p
Enter password:
Welcome to the MySQL monitor.  Commands end with ; or \g.

mysql> use imdb;
Database changed

mysql> select * from actors where first_name like '%mick%';
+--------+------------+-----------+--------+
| id     | first_name | last_name | gender |
+--------+------------+-----------+--------+
|  71699 | Mickey     | Cantwell  | M      |
| 115652 | Mickey     | Dee       | M      |
| 470693 | Mick       | Theo      | M      |
| 716748 | Mickie     | McGowan   | F      |
+--------+------------+-----------+--------+
4 rows in set (0.01 sec)

IMDb practice queries

• What are the names of all movies released in 1995?
• How many people played a part in the movie "Lost in Translation"?
• What are the names of all the people who played a part in the movie "Lost in Translation"?
• Who directed the movie "Fight Club"?
• How many movies has Clint Eastwood directed?
• What are the names of all movies Clint Eastwood has directed?
• What are the names of all directors who have directed at least one horror film?
• What are the names of every actor who has appeared in a movie directed by Christopher Nolan?

Database design principles

• database design : the act of deciding the schema for a database
• database schema: a description of what tables a database should have, what columns each table should contain, which columns' values must be unique, etc.
• some database design principles:
  • keep it simple, stupid (KISS)
  • provide an identifier by which any row can be uniquely fetched
  • eliminate redundancy, especially of lengthy data (strings)
    • integers are smaller than strings and better to repeat
  • favor integer data for comparisons and repeated values
    • integers are smaller than strings and better to repeat
    • integers can be compared/searched more quickly than strings, real numbers

First database design

• what's good and bad about this design?
  • good: simple (one table), can see all data in one place
  • bad: redundancy (name, email, course repeated frequently)
  • bad: most searches (e.g. find a student's courses) will have to rely on string comparisons
  • bad: there is no single column whose value will be unique in each row

Improved database design

• normalizing: splitting tables to improve structure / redundancy (linked by unique IDs)
• primary key: a column guaranteed to be unique for each record (e.g. Lisa Simpson's ID 888)
• foreign key: a column in table A storing a primary key value from table B
  • (e.g. records in grades with student_id of 888 are Lisa's grades)

Design question

• suppose we want to keep track of the teachers who teach each course
  • e.g. Ms. Krabappel always teaches CSE 142 and INFO 100
  • e.g. Ms. Hoover always teaches CSE 143
  • e.g. Mr. Miner always teaches CSE 190M
• what tables and/or columns should we add to the database?

Design answer

• add a teachers table containing information about instructors
• link this to courses by teacher IDs
• why not just skip the teachers table and put the teacher's name as a column in courses?
  • repeated teacher names are redundant and large in size

Relationships between rows (entities)

• The connection between rows (or entities) in one table to those in another table is called a relationship
• Foreign keys model relationships, which can involve different numbers of rows in each table.
• one-to-one relationship: a single row in one table connects to a single row in another (example: if each course uses a single textbook, there could be a one-to-one relationship between the course and textbook tables)
• one-to-many/many-to-one relationship: a single row in one table connects to multiple rows in another table (i.e. there is a one-to-many relationship between students and courses, and a separate many-to-one relationship between courses and students)
• many-to-many relationship: multiple rows in one table connect to multiple rows in another table - this often happens through a third table that models these connections (i.e. grades provides a many-to-many relationship between students and courses)

Foreign key relationships

CREATE TABLE GRADES
...
    FOREIGN KEY (STUDENT_ID) REFERENCES STUDENT (ID)
);


• sometimes a row in one table doesn't make sense without a corresponding row in another table (i.e. a grade needs a student and a course to exist)
• foreign key definitions can automatically "clean up" these "weak" rows when a "strong" one is deleted

CREATE TABLE GRADES
...
    FOREIGN KEY (STUDENT_ID) REFERENCES STUDENT (ID) DELETE CASCADE
);


Schema diagrams

• Visual representation of tables and the relationships between them
• Tables are represented by a box
• Table name at top-center of box followed by a horizontal line
• Columns listed vertically
• Primary key column(s) are underlined
• Relationships represented by lines between tables
• Arrowhead at the end pointing to the "one" table in the relationship
• One-to-one relationship lines have two arrowheads
• One-to-many/many-to-one relationship lines have one arrowhead
• Many-to-many relationship lines have no arrowheads
